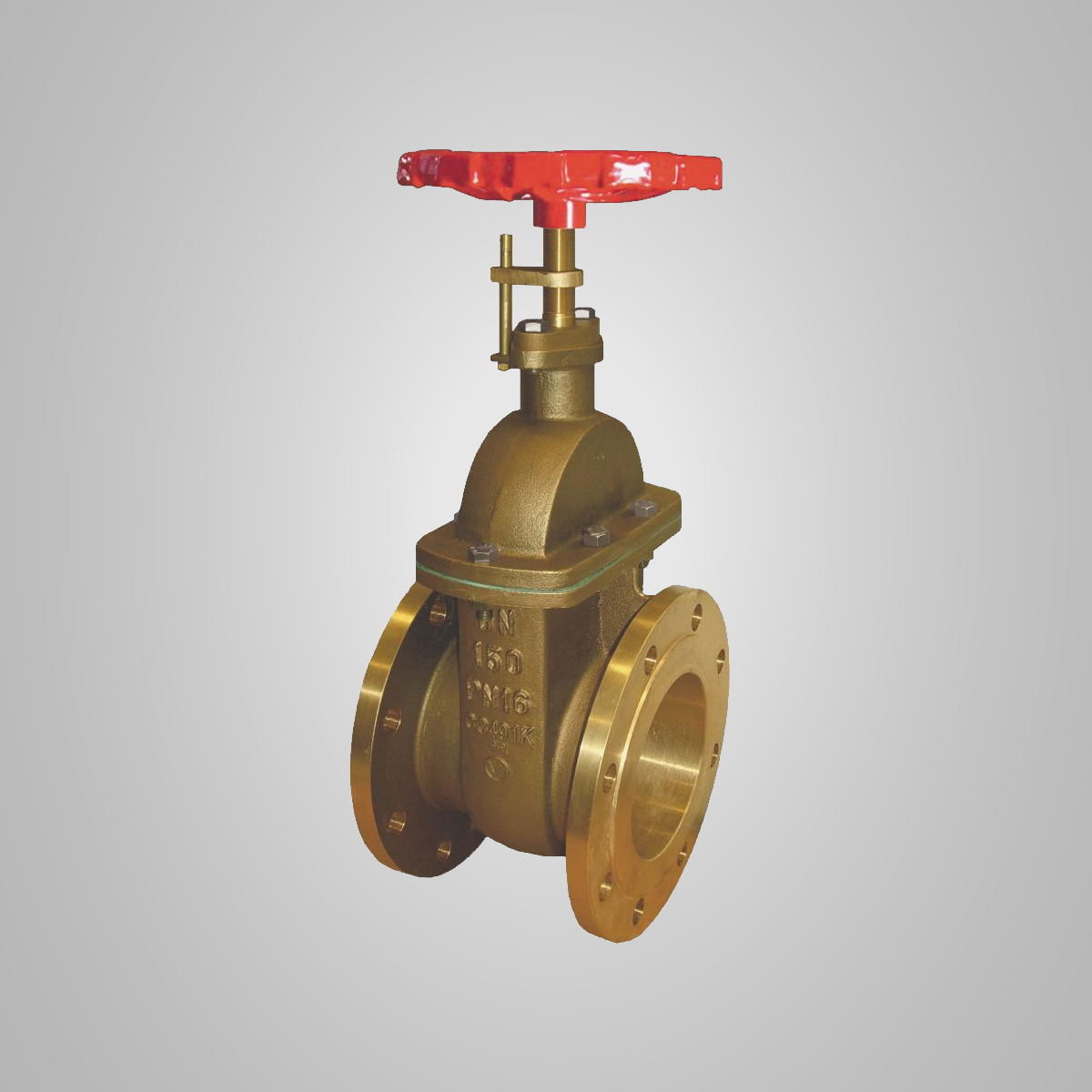

Flanged Gate Valve
Art. 09320 onshore
Flanged Gate Valves, PN16-10, DIN EN 12288
Bronze body and bolted topwork
With maintenance-free gland packing (O-Ring) and non-rising stem
Flanged connection acc. to EN 1092-3 PN16 or PN10,
Raised Face Ra12.5 from DN100 up to DN200, Flat Face Ra12.5 for DN250
Part No. 09320.X.110000
Valve with opening indicator and locking device without lock
Part No. 09320.X.120000
Valve with opening indicator and locking device with lock
Available options:
| Pos. | Code | Description |
| .X. | – | Please see chart below |
| Flange personalized on request |
APPLICATION
Suitable for transformer oil.
WORKING TEMPERATURES AND PRESSURE
-25°C / -13°F (248K) up to +120°C /+248°F (393K) and maximum 6.0 bar
When requesting an offer or order, please indicate flow medium, working pressure and working temperature.
Standard marking acc.to Pressure Equipment Directive 2014/68/EU (PED).
Pressure test acc.to EN 12266:2004 – leak allowed.
Description and materials
| Description | DIN EN | ASTM | |
| 1 | Body |
CC491K
|
B 62 UNS C83600 |
| 2 | Wedge |
CC491K
|
B 62 UNS C83600 |
| 3 |
Stem
|
CW614N
|
B 283 UNS C38500
|
| 4 |
Bonnet gasket
|
Klingersil C-4400
|
|
| 5 |
Headpiece
|
CC491K
|
B 62 UNS C83600
|
| 6 |
Bolts
|
1.4571/A4
|
similar A 194 B8T
|
| 7 |
O-rings
|
FPM (Viton)
|
|
| 8 |
Handwheel
|
Steel
|
Dimensions
|
Description
|
Dimensions [mm]
|
|||||
|
Nominal Diameter
|
DN | 100 | 125 | 150 | 200 | 250 |
|
Size Code
|
X | 1000 | 1250 | 1500 | 2000 | 2500 |
| Face-to-face dimension | L | 190 | 208 | 210 | 230 | 250 |
| Height | H | 367 | 429 | 469 | 593 | 690 |
| Flange Diameter | D | 220 | 250 | 285 | 340 | 395 |
| Width of flange with step |
B
|
20 | 22 | 22 | 24 | 24 |
| Step Width | E | 3 | 3 | 3 | 3 | – |
| Step Diameter | F | 158 | 188 | 212 | 268 | – |
| Distance between holes | K | 180 | 210 | 240 | 295 | 350 |
| N° x holes diameter | N°xD2 | 8×18 | 8×18 | 8×22 | 8×22 | 12×22 |
| Handwheel-Ø | W | 175 | 225 | 225 | 300 | 300 |
| Max. working pressure |
PN
|
16 | 16 | 16 | 10 | 10 |
| Flange connect DIN EN 1092-3 | PN | 16/10 | 16/10 | 16/10 | 10 | 10 |
| Weight | approx. kg | 23.5 | 32.0 | 42.5 | 71.0 | 106.0 |
